Douglas Outdoor Power Volleyball Systems

Douglas Outdoor Power Volleyball Systems (Model #DOPVS)

The Douglas Outdoor Power Volleyball Systems are built to withstand outdoor abuse in either grass or sand court installations. There are three options based on the size of the volley ball posts: 3, 3.5 and 4 inch square.  The 3 and 3.5 inch versions are made of Steel and the 4 inch version is made of Aluminum.

3 inch Sq Post System

The Douglas 3″ SQ Steel Volleyball System is built to withstand outdoor abuse in either grass or sand court installations. This recreational-quality post set is great for parks and recreation installations or creating a backyard court.

Features:
3″ SQ steel tubing with a 1/8″ wall thickness
Black baked-on polyester powder coat finish
Rugged, smooth operating net tensioning reel
Removable handle for safety and convenience
Volleyball Net, 36″L X 32’L (VB-1200RB)
Net is constructed from 3 mm, 4″ SQ polyethylene netting

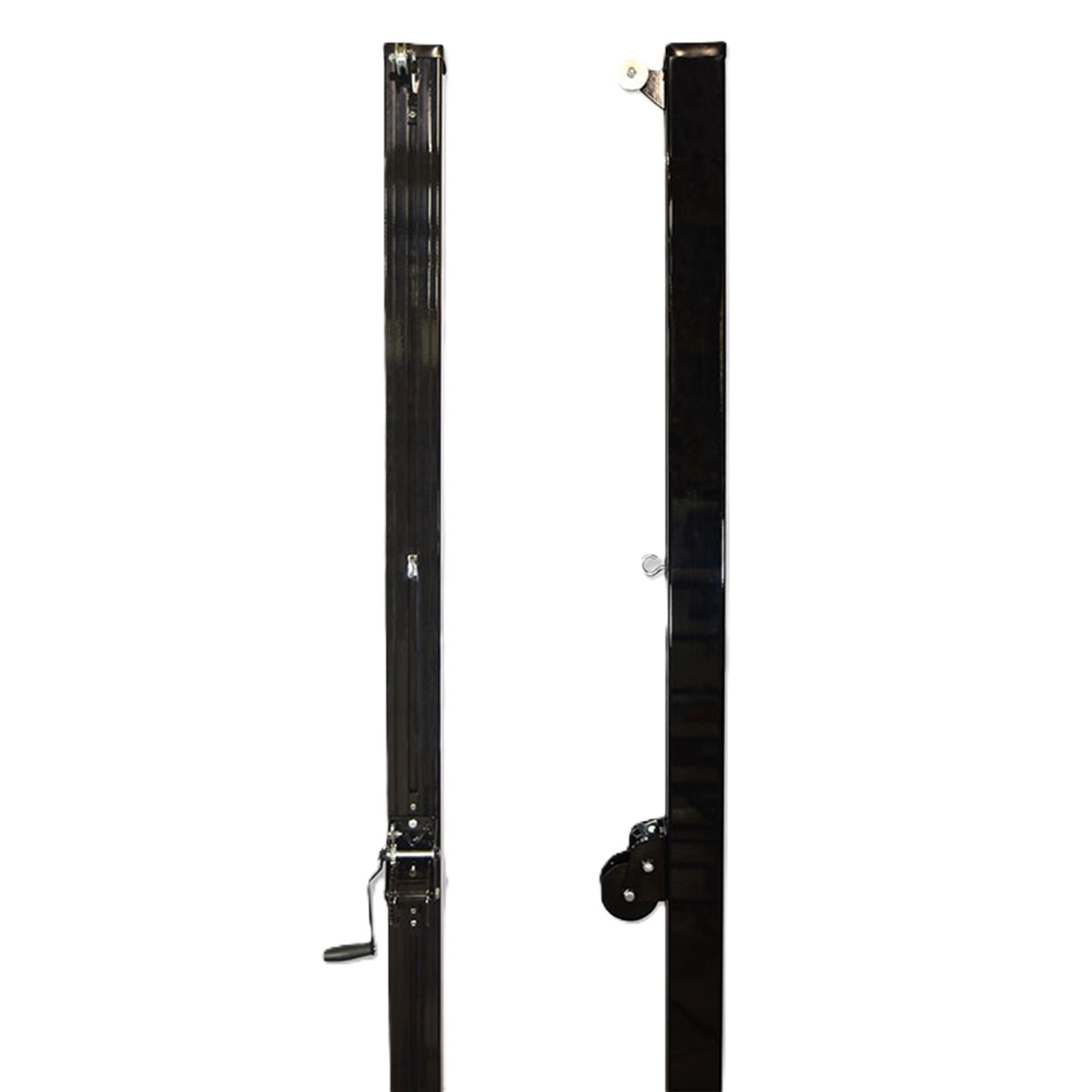

POSTS
This solid system is made in the USA and is constructed of 3″ square steel tubing with a 1/8″ wall thickness. Poles are 10’6″ in length and have a lifetime guarantee from bending. All steel components are finished with a black, baked-on polyester powder coat finish. This strong finish adds resistance to chipping and the ultimate weather protection against the elements.

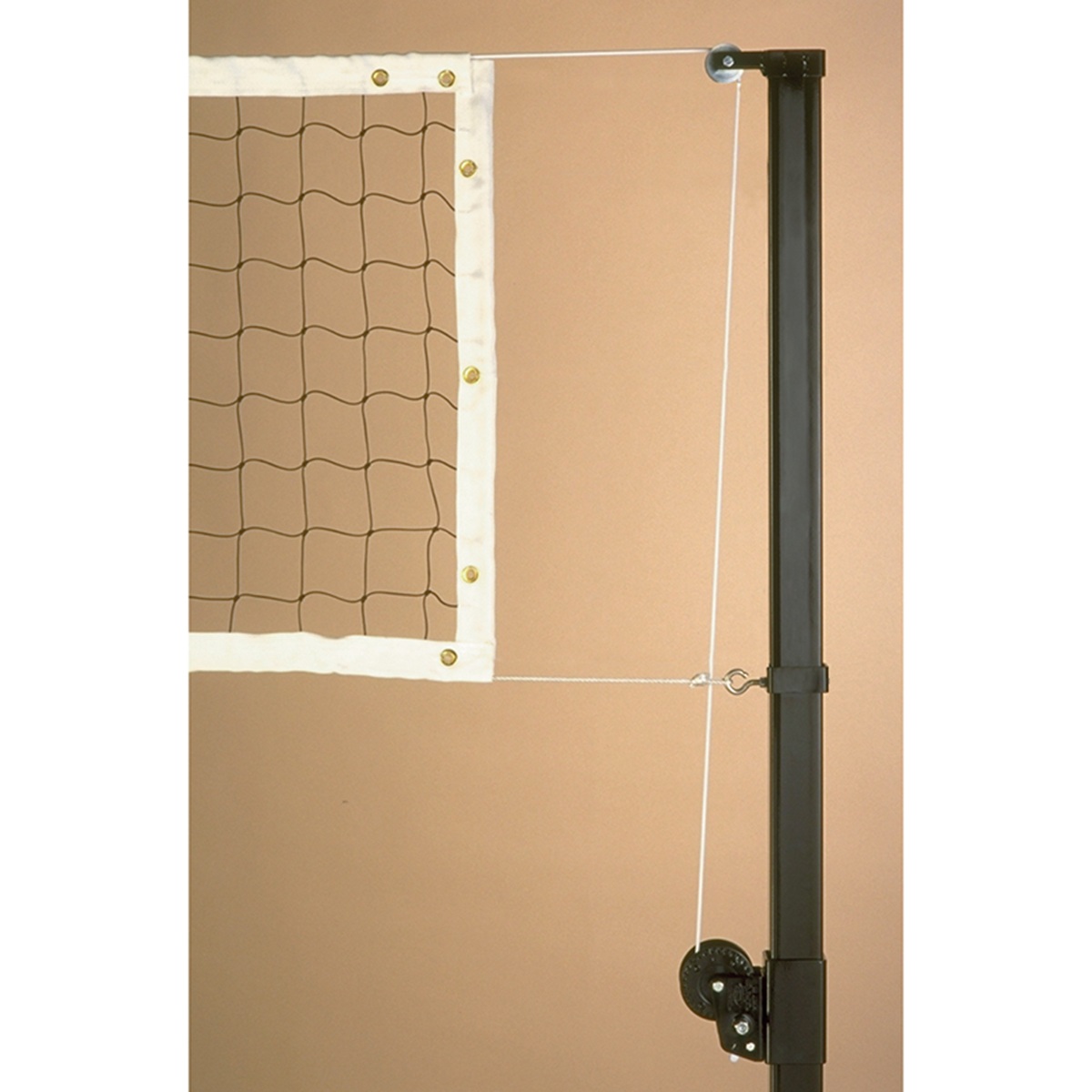

HARDWARE
The net collars are adjustable, allowing for easy height adjustment between 7’4″ and 8′ official play. The rugged net tensioning reel case and gears are constructed of heavy-duty steel. This simple reel assembly is easy to use and has smooth operation. The handle has a comfortable contoured grip and is removable to prevent unwanted tampering.
VOLLEYBALL NET
The VB-1200RB Competition net meets USVBA standards, measuring 36″ in height and 32′ length. Black netting is 3.0 mm in standard 4″ square. Perimeter bands are constructed from 2.5″ wide 20 oz white vinyl. The nets are braced with fiberglass dowels. The top cable is 41′ in length and is vinyl-coated steel with 3600 lb. break strength. Headband cable ends are double-pressed for strength—6 mm Rope in the bottom net band.
GROUND SLEEVES & INSTALLATION
The recommended ground sleeves allow for easy removal and reinstallation of the system, making it ideal for seasonal or temporary setups.

24″ Long Aluminum ground sleeves (GS-24SQ/AL) are used for grass play installation. (Not included)
36″ Long steel ground sleeves with collars (GS-36SQ) are used for sand volleyball installation. (Not included)

5 Year Limited Warranty

3.5 inch Sq Post System

The top-of-the-line Douglas 3.5″ Steel Volleyball System is built for prolonged outdoor use in grass or sand court installations. This durable post set is great for parks and recreation installations, sports facilities, or backyard court creation.

Features:
3.5″ SQ tubing with a 3/16″ wall thickness
Black baked-on polyester powder coat finish
Rugged, smooth operating net tensioning reel
Removable handle for safety and convenience
The system includes a net, and all hardware.
Volleyball Net, 36″H X 32’L (VB-1200)
Net is constructed from 3 mm, 4″ SQ polyethylene netting

POSTS
This solid system is made in the USA and is constructed of 3-1/2″ square steel with a 3/16″ wall thickness. Poles are 12′ in length, allowing 42″ direct burial into concrete footings or for ground sleeve installation. These ultra-strong posts have a lifetime guarantee from bending. All steel components are finished with a black, baked-on polyester powder coat finish. This strong finish adds resistance to chipping and the ultimate weather protection against the elements.
HARDWARE
The net collars are adjustable, allowing for easy height adjustment between 7’4″ and 8′ official play. The rugged net tensioning reel case and gears are constructed of heavy-duty steel. This simple reel assembly is easy to use and has smooth operation. The handle has a comfortable contoured grip and is removable to prevent unwanted tampering.
VOLLEYBALL NET
The VB-1200 Competition net meets the USVBA standards, measuring 36″ in height and 32′ length. Black netting is 3.0 mm in standard 4″ square. The perimeter bands are constructed from 2.5″ wide 20 oz white vinyl. Nets are braced with fiberglass dowels. The top cable is 41′ in length and is vinyl-coated steel with a 3600 lb. break strength. The headband Cable ends are double-pressed for strength. The bottom band has a 38′ steel cable with a 2400-lb. break strength.
GROUND SLEEVES & INSTALLATION
The system can be installed 42″ direct burial or with steel ground sleeves for semi-permanent installation.

5-Year Limited Warranty

4.0 inch Sq Post System

This elite outdoor aluminum volleyball system offers the ultimate durability and weather resistance and can be used for either grass or sand courts. This durable post set is great for parks and recreation installations, sports facilities, or backyard court creation.

Features:
4″ SQ extruded structural aluminum
Black baked-on polyester powder coat finish
Continues structured channel, no external pressure points
Rugged, smooth operating net tensioning reel
Removable handle for safety and convenience
Volleyball Net, 36″H X 32’L (VB-1200)
Net is constructed from 3 mm, 4″ sq polyethylene netting
The system includes the net and all hardware.
Sold per pair
For outdoor use
Optional ground sleeves are recommended and sold separately

POSTS
This solid system is made in the USA and is constructed of 4″ square extruded structural aluminum with excellent bend resistance and is 100% rust-proof. The post and steel hardware components are finished with a black, baked-on polyester powder coat finish. This strong finish adds resistance to chipping and the ultimate weather protection against the elements. Poles are 10’6″ high, and the complete system is only 150 lbs., half the weight of a comparable steel system. Square poles feature a continuous structured channel, so there are no external pressure points to damage the post’s finish. The built-in channel allows for easy net height adjustment from 7’4″ to 8′ official play.
HARDWARE
The rugged net tensioning reel attaches in the built-in channel. The case and gears are constructed from heavy-duty steel. This simple reel assembly is easy to use and has smooth operation. The handle has a comfortable contoured grip and is removable to prevent unwanted tampering.
VOLLEYBALL NET
The VB-1200 Competition net meets the USVBA standards, measuring 36″ in height and 32′ length. Black netting is 3.0 mm in standard 4″ square. The perimeter bands are constructed from 2.5″ wide 20 oz white vinyl. Nets are braced with fiberglass dowels. The top cable is 41′ in length and is vinyl-coated steel with a 3,600 lb. break strength. The headband cable ends are double-pressed for strength. The bottom band has a 38′ steel cable with a 2400-lb. break strength.
GROUND SLEEVES & INSTALLATION
The system can be installed direct burial or with optional ground sleeves for semi-permanent installation. Recommended ground sleeves allow for easy removal and reinstallation of the system, making it ideal for seasonal or temporary setups.
24″ Long aluminum ground sleeves (GS-24SQ) are used for grass play installation. (Not Included)
36″ Long steel ground sleeves with collars (GS-36SQ) are used for sand volleyball installation. (Not Included0

5-Year Limited Warranty

The Douglas Outdoor Power Volleyball Systems are built to withstand outdoor abuse in either grass or sand court installations.
